Sensor for COVID-19, flu gives results in 10 seconds

Conventional tests for respiratory viruses can identify certain likely culprits by relying on chemical reactions, but some researchers want to swap chemistry for electrical changes sensed by nanomaterials. Scientists at The University of Texas at Austin have now used a single-atom-thick nanomaterial to build a device that can simultaneously detect the presence of the viruses that cause COVID-19 and the flu — at much lower levels and much more quickly than conventional tests for either.

As noted by Austin’s Dr Deji Akinwande, the symptoms of both flu and COVID-19 overlap considerably, making it difficult to distinguish between them. “When both of these viruses are circulating together, as they did earlier this winter, it would be immensely useful to have a sensor that can simultaneously detect whether you have COVID, flu, none of the above or both,” he said.

Akinwande and his group constructed the COVID-19 and flu sensor using graphene, a single layer of carbon atoms arranged in a hexagonal lattice pattern. Its extreme thinness renders graphene highly sensitive to any electrical changes in its environment. The researchers see enormous potential in using it and other, similar nanomaterials to create sensors for many different applications.

“These ultrathin nanomaterials generally hold the record for best sensitivity, even down to the detection of single atoms, and they can improve the ability to detect very small quantities of basically anything that needs to be sensed, whether it’s bacteria or viruses, in gas or in blood,” Akinwande said.

To build the infection sensor, the researchers had to make graphene respond to the presence of viral protein. To do so, they looked to the immune system, which produces antibodies that are fine-tuned to recognise and latch onto particular pathogens. The researchers linked antibodies against SARS-CoV-2, the virus that causes COVID-19, and against the flu virus to graphene. When a sample from an infected person is placed on the sensor, these antibodies bind to their target proteins, prompting a change in the electrical current.

The researchers did not have the safety facilities needed to use whole, active flu or SARS-CoV-2 viruses to test the sensor, so instead they used proteins from these viruses delivered in fluid intended to resemble saliva. Their results indicated that not only could the sensor detect the presence of the proteins, it could do so when they were present at extremely low quantities. This suggested the sensor could be used for detecting the much sparser viral particles found in breath, Akinwande said.

The sensor also worked quickly, returning results within about 10 seconds of dropping in a sample. By comparison, conventional COVID-19 tests can take minutes or hours, and a dual COVID and flu test recently authorised by the US FDA takes about half an hour to produce results.

Having now presented their results at the spring meeting of the American Chemical Society (ACS), the researchers are already working to improve the sensor’s performance further, including by expanding the slate of viruses it can detect. With funding from the National Science Foundation, they are developing a sensor designed to test for SARS-CoV-2 variants, such as Omicron and Delta — and while they are currently focusing on a two-variant design, the test could be adapted to simultaneously identify even more.

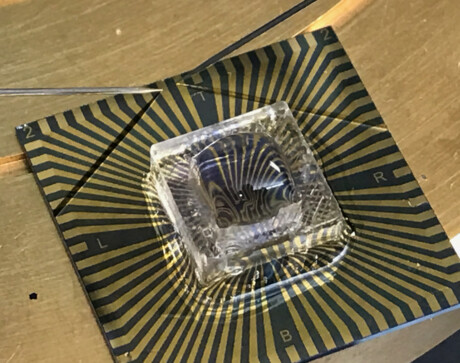

Image caption: The nanomaterials-based sensor detects flu and COVID-19 much more quickly than conventional tests. Image credit: Dmitry Keeriv.
