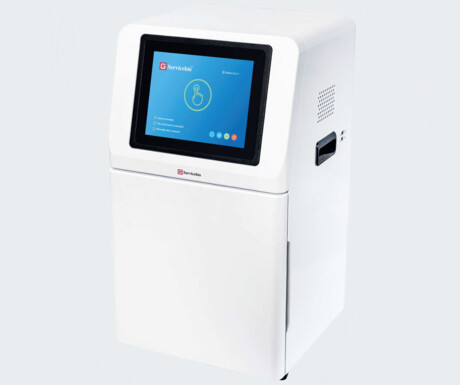

Servicebio SCG-W6000 multifunctional imaging instrument

Click2Contact

Servicebio’s SCG-W6000 triple imaging system, available from Pacific Laboratory Products, is a device that uses chemiluminescence technology for imaging and also combines fluorescence and regular UV for general gel viewing. It supports independent detection of multiple fluorescence channels, including a white light channel that corresponds to bright-field images, a green fluorescence channel with a 470 nm excitation light source, a red fluorescence channel with a 530 nm excitation light source and a near-infrared (NIR) channel with a 640 nm excitation light source.

Enabling fluorescence, protein and DNA imaging, the multifunctional instrument is equipped with a high-sensitivity cooled camera with a resolution of 20 million pixels (pixel size of 2.4 x 2.4 µm). It enables fast and high-throughput detection and imaging of samples without the need for additional light sources.

The chemiluminescence imaging system has a clever AI algorithm, capable of quickly calculating the optimal exposure time. It features a deep-cooling, high-sensitivity camera capable of detecting weak signals, reducing image noise.

The unit includes standard analysis software, capable of automatically identifying and analysing lanes. A large 10.4″ touchscreen computer, also compatible with external computers, features one-button control switch and simple and intuitive operation. With resolution of 5440 x 3648 and cooling to –40°C, the unit has extensive applications in life sciences, pharmaceuticals, environmental protection and more.

For more information, contact one of Pacific Laboratory Products’ friendly sales representatives for a quote or visit: https://pacificlab.com.au/products/plp-scg-w6000-chemiluminescence-imaging-system-inc-flourescence-and-gel-imaging-functions.
