Photocatalyst can turn carbon dioxide into methane fuel


Friday, 19 March, 2021



Photocatalyst can turn carbon dioxide into methane fuel

An international research team, led by City University of Hong Kong (CityU), has developed a new photocatalyst that can produce methane fuel (CH4) selectively and effectively from carbon dioxide using sunlight. Writing in the journal Angewandte Chemie, the researchers said the quantity of methane produced was almost doubled in the first eight hours of the reaction process.

Carbon dioxide (CO2) is one of the major greenhouse gases causing global warming, so its potential conversion into energy would be killing two birds with one stone in terms of addressing environmental issues. But CityU’s Dr Ng Yun-hau explained that it is thermodynamically challenging to convert carbon dioxide into methane using a photocatalyst because the chemical reduction process involves a simultaneous transfer of eight electrons. Carbon monoxide, which is harmful to human, is more commonly produced in the process because it requires the transfer of two electrons only.

Dr Ng pointed out that cuprous oxide (Cu2O), a semiconducting material, has been applied as both photocatalyst and electrocatalyst to reduce carbon dioxide into other chemical products like carbon monoxide and methane in different studies. However, it faces several limitations in the reduction process, including its inferior stability and the non-selective reduction which causes the formation of an array of various products. Separation and purification of these products from the mixture can be highly challenging and this imposes technological barrier for large-scale application. Furthermore, cuprous oxide can easily corrode after brief illumination and evolve into metallic copper or copper oxide.

To overcome these challenges, Dr Ng and his team — which included researchers from Australia, Malaysia and the UK — synthesised a novel photocatalyst by enwrapping cuprous oxide with copper-based metal–organic frameworks (MOFs). Using this new catalyst, the team could manipulate the transfer of electrons and selectively produce pure methane gas.

They discovered that, when compared with cuprous oxide without a MOF shell, cuprous oxide with a MOF shell reduced carbon dioxide into methane stably under visible-light irradiation with an almost doubled yield. Also, cuprous oxide with a MOF shell was more durable and the maximum carbon dioxide uptake was almost seven times that of the bare cuprous oxide.

“Inspired by the photosynthesis in nature, carbon dioxide can now be converted effectively into methane fuel by our newly designed solar-powered catalyst, which will lower carbon emission,” Dr Ng said. “Furthermore, this new catalyst is made from copper-based materials, which is abundant and hence affordable.”

Carbon dioxide uptake increased

The team encapsulated the one-dimensional (1D) cuprous oxide nanowires (with a diameter of about 400 nm) with the copper-based MOF outer shell of about 300 nm in thickness. This conformal coating of MOF on cuprous oxide would not block light-harvesting of the catalyst. Besides, MOF is a good carbon dioxide adsorbent. It provided considerable surface areas for carbon dioxide adsorption and reduction. As it was closely attached to the cuprous oxide, it brought a higher concentration of carbon dioxide adsorbed at locations near the catalytic active sites, strengthening the interaction between carbon dioxide and the catalyst.

Moreover, the team discovered that the cuprous oxide was stabilised by the conformal coating of MOF. The excited charges in cuprous oxide upon illumination could efficiently migrate to the MOF. In this way, excessive accumulation of excited charges within the catalyst which could lead to self-corrosion was avoided, hence extending the catalyst’s lifetime.

“By using the advanced time-resolved photoluminescence spectroscopy, we observed that once the electrons were excited to the conduction band of the cuprous oxide, they would be directly transferred to the lowest unoccupied molecular orbital (LUMO) of the MOF and stayed there, but did not return quickly to their valence band, which is of lower energy,” said CityU’s Dr Wu Hao, the first author of the paper. “This created a long-lived charge separated state. Therefore, electrons that stayed in the MOF would have a higher chance to undergo chemical reactions.”

MOFs and metal oxides

Previously, it was generally believed that the improved photocatalytic activities were merely induced by MOFs’ reactant concentration effect and MOFs only served as a reactant adsorbent. However, Dr Ng’s team unveiled how the excited charges migrate between cuprous oxide and MOFs in this research.

“MOF is proven to play a more significant role in shaping the reaction mechanism as it changes the electron pathway,” he said. He pointed out that this discovery has extended the understanding of relationships between MOFs and metal oxides beyond their conventional physical/chemical adsorption type of interactions to facilitating charge separation.

The team has spent more than two years to develop this effective strategy in converting carbon dioxide. Their next step will be to further increase the methane production rate and explore ways to scale up both the synthesis of the catalyst and the reactor systems.

“In the entire process of converting carbon dioxide to methane, the only energy input we have used was sunlight,” Dr Ng said. “We hope in the future, carbon dioxide emitted from factories and transportation can be ‘recycled’ to produce green fuels.”

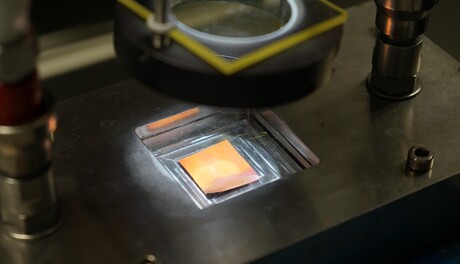

Image caption: Dr Ng and his team synthesised a new photocatalyst by enwrapping cuprous oxide with copper-based metal–organic frameworks. Image credit: City University of Hong Kong.
